規格圖
深圳市興泰達電子有限公司20年專注配線器材/緊固件/結構件產品解決方案
- 全國服務熱線
- 136-0044-1592
? 材質：主體螺母為尼龍66，密封墊圈為TPE
? 阻燃等級：UL94V-2
? 認證：UL注冊編號E51579，CSA認證編號93876C
? 防水等級：IP68（70psi，5bar）
? 工作溫度：靜態-40℃到115℃，動態-20℃到100℃
較高的防水等級。
經過認證，可用于NEMA 6和6P工況。
梯形螺紋可防止安裝時跳牙并且實現快速安裝。
所有接頭均采用尼龍本體，密封墊圈采用熱塑性彈性體材料
耐鹽水、弱酸、汽油、酒精、油脂等普通溶劑的腐蝕

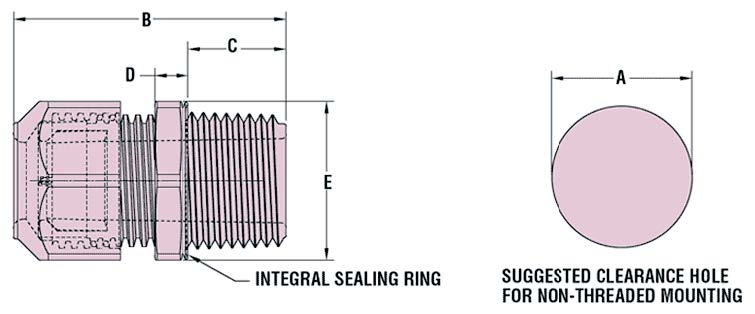

| Part Number 料號 | Cable Dia. Range 線徑范圍 | Description 型號 | Part Dimensions 零件尺寸 | ||||||
| Black 黑色 | Grey 淺灰色 | Min 最小 | Max 最大 | A | B | C | D | E | |
| M4514 | M4515 | 1.7 | 5.6 | RLTCG 1/4 | 13.7 | 32.8 | 11.4 | 5.3 | 16 |
| M4516 | M4517 | 2.9 | 6.4 | LTCG 1/4 | 13.7 | 32.8 | 11.4 | 5.3 | 16 |
| M3458 | M3459 | 1.7 | 5.8 | RLTCG 3/8 | 17.3 | 35.8 | 12.4 | 5.3 | 21.1 |
| M3228 | M3229 | 2.7 | 7.9 | LTCG 3/8 | 17.3 | 35.8 | 12.4 | 5.3 | 21.1 |
| M4518 | M4519 | 2.4 | 7.4 | RLTCG 1/2 | 22.2 | 43.2 | 15.5 | 5.3 | 24.9 |
| M3231 | M3232 | 4.3 | 11.4 | LTCG 1/2 | 22.2 | 43.2 | 15.5 | 5.3 | 24.9 |
| M4520 | M4521 | 4.6 | 11.2 | RLTCG LL 1/2 | 22.2 | 42.7 | 11.2 | 6.4 | 26.9 |
| M3200 | M3201 | 5.8 | 13.5 | LTCG LL 1/2 | 22.2 | 42.7 | 11.2 | 6.4 | 26.9 |
| M3460 | M3461 | 6.5 | 12.4 | RLTCG 3/4 | 26.4 | 50.8 | 15.7 | 6.4 | 33 |
| M3234 | M3235 | 11 | 17.9 | LTCG 3/4 | 26.4 | 50.8 | 15.7 | 6.4 | 33 |
| M8439 | M8440 | 12.4 | 20 | RLTCG 1 | 33.7 | 61.2 | 19.3 | 7.6 | 43.9 |
| M8437 | M8438 | 15 | 25.4 | LTCG 1 | 33.7 | 61.2 | 19.3 | 7.6 | 43.9 |
| M4522 | M4523 | 20 | 25.9 | RLTCG 1-1/4 | 42.7 | 68.3 | 19.8 | 7.6 | 52.1 |
| M4524 | M4525 | 22.2 | 32 | LTCG 1-1/4 | 42.7 | 68.3 | 19.8 | 7.6 | 52.1 |
| M3319 | M3320 | 25.4 | 31.5 | RLTCG 1-1/2 | 48.8 | 71.3 | 19.3 | 9.1 | 63 |
| M3317 | M3318 | 31.2 | 38.1 | LTCG 1-1/2 | 48.8 | 71.3 | 19.3 | 9.1 | 63 |
| M3323 | M3324 | 29.5 | 34.3 | RLTCG 2 | 60.8 | 74.3 | 20.1 | 10.7 | 69.9 |
| M3321 | M3322 | 36.8 | 44 | LTCG 2 | 60.8 | 74.3 | 20.1 | 10.7 | 69.9 |
Part Number & Colour料號和顏色Description型號Will fit these cables適用線纜Panel Dimensions適用面.
Part Number料號Cable Dia. Range線徑范圍Thread Size螺紋規格Description型號Part Dimensions零件尺寸Min.
Part Number料號Description型號Chassis Dimensions面板尺寸Part Dimensions零件尺寸Black黑色White白色Mou.
