? 材質：尼龍66
? 阻燃等級：UL94V-2
? 工作溫度：-40℃到105℃
? 認證：UL認證編號E51579，CSA認證編號LR-8919

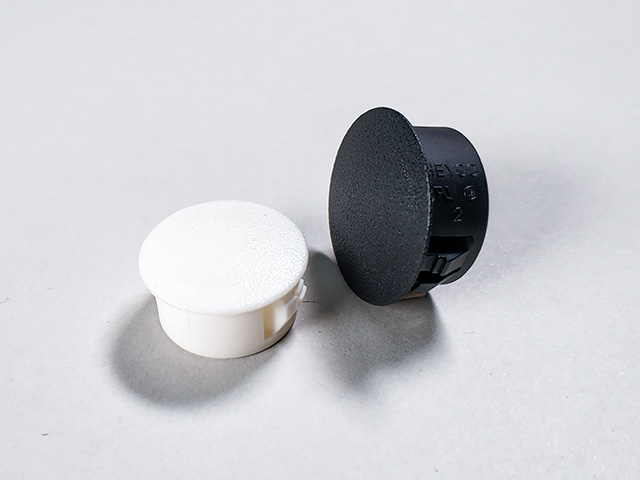

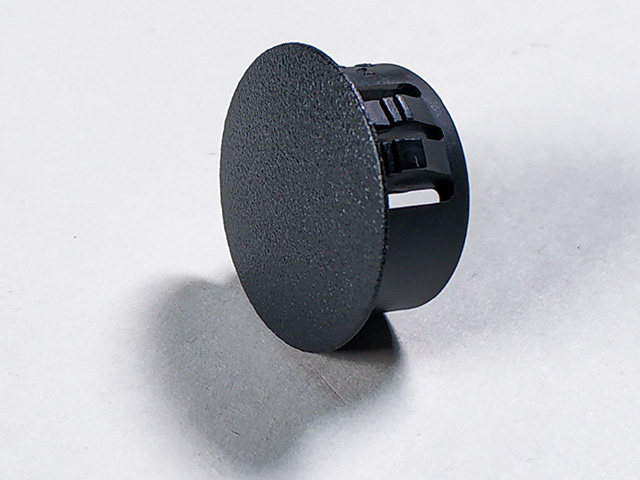

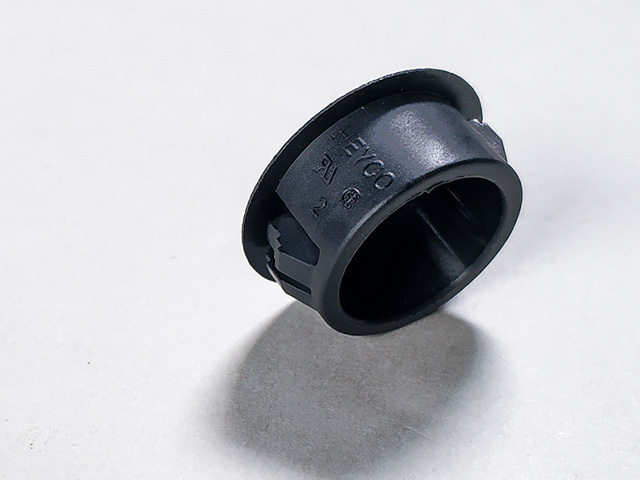

用手指按壓便可簡易快捷安裝
牢固的安裝在面板上并且外觀整潔。
非常適合于蓋住不需要的開口。

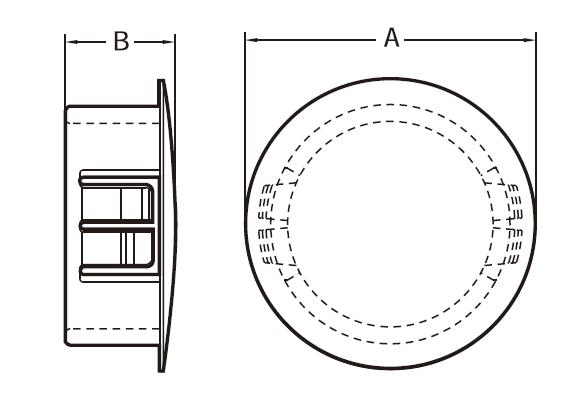

| Part Number 料號 | Description 描述 | Chassis Dimensions 面板尺寸 | Part Dimensions 零件尺寸 | |||
| Black 黑色 | White 白色 | Mounting Hole 安裝孔徑 | Max. Thickness 最大厚度 | A | B | |
| 2590 | 2591 | DP 187 | 4.8 | 1.6 | 6.4 | 5.9 |
| 1654N | 1655N | SP 218N | 5.5 | 1.2 | 7.1 | 6.4 |
| 2607 | 2608 | DP 250-040 | 6.4 | 1 | 7.9 | 7.9 |
| 2607N | 2608N | SP 250N | 6.4 | 1.2 | 7.9 | 6.4 |
| 2603 | 2604 | DP 250 | 6.4 | 1.6 | 7.9 | 7.9 |
| 1660N | 1661N | SP 281N | 7.1 | 1.2 | 8.7 | 6.4 |
| 1678N | 1679N | SP 312N | 7.9 | 1.2 | 9.5 | 6.4 |
| 2613 | 2614 | DP 312 | 8 | 1.6 | 9.5 | 7.9 |
| 1663N | 1664N | SP 343N | 8.7 | 1.2 | 10.3 | 6.4 |
| 1681N | 1682N | SP 375N | 9.5 | 1.2 | 11.9 | 6.4 |
| 2617 | 2618 | DP 375 | 9.5 | 3.2 | 11.9 | 10.3 |
| 2624 | 2625 | DPT 375 | 9.5 | 4.4 | 11.9 | 10.3 |
| 2633 | 2634 | DP 437 | 11 | 3.2 | 13.5 | 10.3 |
| 1687N | 1688N | SP 500N | 12.7 | 1.6 | 14.2 | 6.4 |
| 2643 | 2644 | DP 500 | 12.7 | 3.2 | 14.2 | 10.3 |
| 3004 | 3005 | DPT 500 | 12.7 | 6.4 | 14.7 | 14.3 |
| 1716N | 1717N | SP 512N | 13 | 1.6 | 14.2 | 6.4 |
| 2203 | 2204 | MDP 13 | 13 | 4.1 | 14.2 | 10.3 |
| 2653 | 2654 | DP 562 | 14.3 | 3.2 | 16.7 | 10.3 |
| 1690N | 1691N | SP 625N | 15.9 | 1.6 | 18.2 | 6.4 |
| 2663 | 2664 | DP 625 | 15.9 | 3.2 | 18.2 | 10.3 |
| 3006 | 3007 | DPT 625 | 15.9 | 6.4 | 18.2 | 14.3 |
| 2128 | 2130 | MDP 16 | 16 | 4.1 | 18.5 | 10.3 |
| 2673 | 2674 | DP 687 | 17.5 | 3.2 | 19.8 | 10.3 |
| 2683 | 2684 | DP 750 | 19 | 3.2 | 23.4 | 10.3 |
| 1693N | 1694N | SP 750N | 19.1 | 1.6 | 23.8 | 6.4 |
| 3008 | 3009 | DPT 750 | 19.1 | 6.4 | 23.4 | 14.3 |
| 2667 | 2668 | DPT 812-500 | 19.6 | 12.7 | 25.9 | 22.4 |
| 2131 | 2132 | MDP 20 | 20 | 4.1 | 22.6 | 10.3 |
| 2693 | 2694 | DP 812 | 20.6 | 3.2 | 25.1 | 10.3 |
| 2205 | 2206 | MDP 22 | 22 | 4.1 | 25.9 | 11.5 |
| 1699N | 1700N | SP 875N | 22.2 | 1.6 | 24.6 | 6.4 |
| 2703 | 2704 | DP 875 | 22.2 | 3.2 | 25.8 | 11.5 |
| 3044 | 3045 | DPT 875 | 22.2 | 6.4 | 25.8 | 14.3 |
| 2133 | 2134 | MDP 25 | 25 | 2.5 | 29.8 | 11.5 |
| 2713 | 2714 | DP 1000 | 25.4 | 3.2 | 30.6 | 11.5 |
| 3046 | 3047 | DPT 1000 | 25.4 | 6.4 | 30.6 | 14.3 |
| 2723 | 2724 | DP 1093 | 27.8 - 28.6 | 3.2 | 30.9 | 11.5 |
| 3018 | 3019 | DPT 1093 | 27.8 - 28.6 | 6.4 | 30.9 | 14.3 |
| 2215 | 2216 | MDP 28 | 28 | 4.1 | 31.2 | 11.5 |
| 2733 | 2734 | DP 1187 | 30 | 3.2 | 33.3 | 11.5 |
| 3100 | 3101 | DPT 1187 | 30.1 | 6.4 | 33.3 | 14.3 |
| 2740 | 2741 | DP 1250 | 32 | 3.2 | 34.9 | 11.5 |
| 3102 | 3103 | DPT 1250 | 31.7 | 6.4 | 34.9 | 14.3 |
| 2135 | 2136 | MDP 32 | 32 | 4.1 | 35.3 | 11.5 |
| 2218 | 2219 | MDP 34 | 34.2 | 4.1 | 38.1 | 11.5 |
| 2753 | 2754 | DP 1375 | 35 | 3.2 | 38.1 | 11.5 |
| 3106 | 3107 | DPT 1375 | 34.9 | 6.4 | 38.1 | 14.3 |
| 2763 | 2764 | DP 1500 | 38 | 3.2 | 42.4 | 11.5 |
| 3048 | 3049 | DPT 1500 | 38.1 | 6.4 | 42.4 | 14.3 |
| 2276 | 2277 | DP 1625 | 41.3 | 3.2 | 45.7 | 11.5 |
| 2773 | 2774 | DP 1750 | 45 | 3.2 | 48.4 | 11.5 |
| 3027 | 3028 | DPT 1750 | 44.5 | 6.4 | 48.4 | 14.3 |
| 2291 | 2292 | DP 1875 | 47.6 | 3.2 | 52.1 | 11.9 |
| 2783 | 2784 | DP 2000 | 51 | 3.2 | 55.1 | 11.9 |
| 3050 | 3051 | DPT 2000 | 50.8 | 6.4 | 55.1 | 14.3 |
| 2403 | 2404 | DP 2.093 | 53.2 - 54.0 | 6.4 | 60 | 19.1 |
| 2411 | 2412 | DP 2.25 | 57.2 | 6.4 | 63 | 19.1 |
| 2790 | 2791 | DP 2.5 | 64 | 6.4 | 69 | 19.1 |
| 2455 | 2456 | DP 3.0 | 76.2 | 6.4 | 80.5 | 19.1 |
| 2482 | 2483 | DP 3.375 | 85.7 | 6.4 | 92.9 | 19.1 |
| 2464 | 2465 | DP 3.5 | 88.9 | 6.4 | 92.9 | 19.1 |
| 2473 | 2474 | DP 4.0 | 101.6 | 6.4 | 105.8 | 18 |
| 2451 | 2452 | DP 5.0 | 127 | 6.4 | 133 | 19.1 |
| 2453 | 2454 | DP 6.0 | 152.4 | 6.4 | 157.9 | 19.8 |
