? 螺牙規格:公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

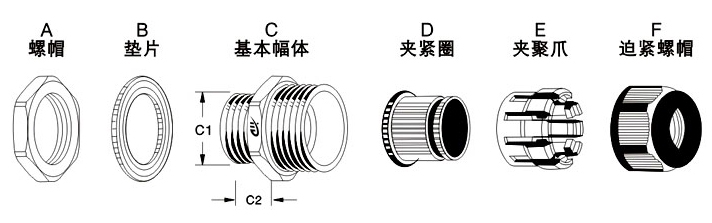

? 產品材質:A、C、E、F部分采用尼龍PA66制成,B.D部分采用EPDM耐候橡膠制成。(可定制耐寒、耐高溫橡膠;耐高酸堿、耐化學與抗腐蝕橡膠)。
? 防護等級:IP68-10防水、94V-2防火(可定制更高等級)
? 工作溫度:靜態-40℃至100℃或瞬間可耐熱至120℃;動態-20℃至80℃或瞬間可耐熱至100℃。
? 產品顏色:黑色、灰色,其他顏色可定做。
? 產品特性:特殊夾緊爪與夾緊圈之設計,夾緊電纜范圍大,抗拉力特強,可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
規格 | 編號 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 |
Thread | Item.No. | CableRange | ThreadO.D. | ThreadLength | SpannerSize |
Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | ||
M12x1.5 | M12A-5.5 | 3-5.5 | 12 | 8.5 | 18/19 |
M12A-8 | 4.5-7.8 | 12 | 8.5 | 18/19 | |
M16x1.5 | M16AS-5.5-ST | 3-5.5 | 16 | 10 | 22/19 |
M16AS-8-ST | 4-8 | 16 | 10 | 22/19 | |
M16A-7-ST | 4-7 | 16 | 10 | 22/22 | |
M16A-10-ST | 6-10 | 16 | 10 | 22/22 | |
M16AL-7 | 4-7 | 16 | 15 | 22/22 | |
M16AL-10 | 6-10 | 16 | 15 | 22/22 | |
M20x1.5 | M20AS-9-ST | 5-9 | 20 | 10 | 27/24 |
M20AS-12.5-ST | 6-12.5 | 20 | 10 | 27/24 | |
M20A-11-ST | 6-11 | 20 | 10 | 27/27 | |
M20A-14-ST | 9-14 | 20 | 10 | 27/27 | |
M20AL-11 | 6-11 | 20 | 15 | 27/27 | |
M20AL-14 | 9-14 | 20 | 15 | 27/27 | |
M22x1.5 | M22A-11-ST | 6-11 | 22 | 10 | 27/27 |
M22A-14-ST | 9-14 | 22 | 10 | 27/27 | |
M25x1.5 | M25AS-11--ST | 6-11 | 25 | 10 | 33/27 |
M25AS-14--ST | 9-14 | 25 | 10 | 33/27 | |
M25A-16-ST | 10-16 | 25 | 10 | 33/33 | |
M25A-18-ST | 13-18 | 25 | 10 | 33/33 | |
M25AL-16 | 10-16 | 25 | 15 | 33/33 | |
M25AL-18 | 13-18 | 25 | 15 | 33/33 | |
M32x1.5 | M32A-22 | 15-22 | 32 | 15 | 41/42 |
M32A-25 | 18-25 | 32 | 15 | 41/42 | |
M40x1.5 | M40A-26 | 20-26 | 40 | 20 | 50/52 |
M40A-31 | 24-31 | 40 | 20 | 50/52 | |
M50x1.5 | M50A-33 | 25-33 | 50 | 22 | 62/62 |
M50A-41 | 31-41 | 50 | 22 | 62/62 | |
M63x1.5 | M63A-46 | 39-46 | 63 | 25 | 75/75 |
M63A-51 | 44-51 | 63 | 25 | 75/75 | |
M75x2.0 | M75A-60 | 50-60 | 75 | 25 | 92/92 |
M75A-66 | 56-66 | 75 | 25 | 92/92 | |
M90x2.0 | M90A-68 | 58-68 | 90 | 25 | 110/110 |
M90A-77 | 66-77 | 90 | 25 | 110/110 |
