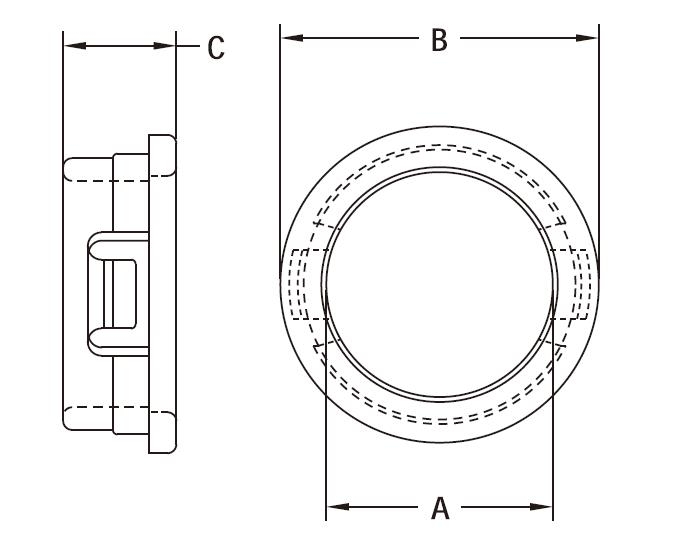

規格圖
深圳市興泰達電子有限公司18年專注配線器材/緊固件/結構件產品解決方案
- 全國服務熱線
- 136-0044-1592
? 材料：尼龍66
? 阻燃等級：UL94V-2
? 認證：UL認證編號E15331，CSA認證編號LR-8919
? 工作溫度：-18℃到105℃

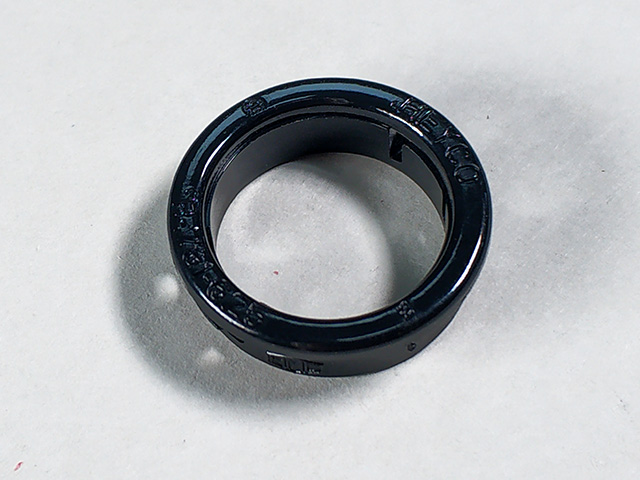

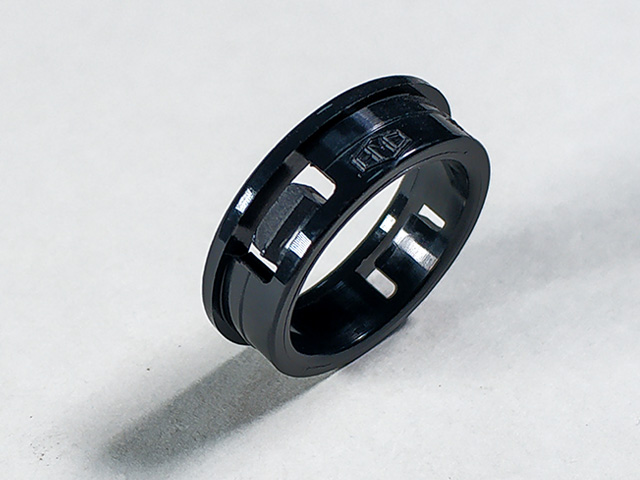

用手按壓即可安裝。
完全絕緣并且隔離電力電纜、通信電纜、低轉速軸以及推拉桿。
| Part Number 料號 | Description 型號 | Chassis Dimensions 面板尺寸 | Part Dimensions 零件尺寸 | ||||
| Black 黑色 | White 白色 | Mounting Hole Dia. 安裝孔徑 | Max. Thickness 最大厚度 | A Inside Diameter 內徑 | B Head Diameter 頭部直徑 | C Overall Height 總高度 | |
| 2800 | 2801 | B 187-125 | 4.7 | 1.6 | 3.2 | 6.4 | 6 |
| 2859N | 2860N | B 218-125N | 5.5 | 1.2 | 3.2 | 7.1 | 6 |
| 2859 | 2860 | B 218-125 | 5.5 | 1.6 | 3.2 | 7.1 | 6 |
| 2003N | 2004N | B 250-187N | 6.4 | 1.2 | 4.7 | 7.9 | 6 |
| 2853N | 2854N | B 281-218N | 7.1 | 1.2 | 5.6 | 8.7 | 6 |
| 2853 | 2854 | B 281-218 | 7.1 | 1.6 | 5.6 | 8.7 | 6 |
| 2808 | 2809 | B 307-244 | 7.8 | 1.6 | 6.2 | 9.7 | 6 |
| 2810N | 2811N | B 312-250N | 7.9 | 1.2 | 6.3 | 9.5 | 6 |
| 2810 | 2811 | B 312-250 | 7.9 | 1.6 | 6.3 | 9.5 | 6 |
| 2856N | 2857N | B 343-218N | 8.7 | 1.2 | 5.6 | 10.3 | 6.4 |
| 2856 | 2857 | B 343-218 | 8.7 | 1.6 | 5.6 | 10.3 | 6.4 |
| 2803N | 2804N | B 375-250N | 9.5 | 1.2 | 6.3 | 11.1 | 6.4 |
| 2803 | 2804 | B 375-250 | 9.5 | 1.6 | 6.3 | 11.1 | 6.4 |
| 2815 | 2816 | B 390-265 | 9.9 | 1.6 | 6.7 | 10.9 | 6.4 |
| 2806 | 2807 | B 406-281 | 10.3 | 1.6 | 7.1 | 11.9 | 6.4 |
| 2813 | 2814 | B 437-312 | 11.1 | 1.6 | 7.9 | 12.7 | 6.4 |
| 2817 | 2818 | B 468-343 | 11.9 | 1.6 | 8.6 | 13.5 | 6.4 |
| 2820N | 2821N | B 500-375N | 12.7 | 1.6 | 9.5 | 14.3 | 6.4 |
| 2820 | 2821 | B 500-375 | 12.7 | 1.6 | 9.5 | 14.3 | 6.4 |
| 2822 | 2823 | B 512-375 | 13 | 1.6 | 9.5 | 14.3 | 6.4 |
| 2824 | 2825 | B 531-406 | 13.5 | 1.6 | 10.3 | 15.1 | 6.4 |
| 2833 | 2834 | B 593-468 | 15.1 | 1.6 | 11.9 | 16.7 | 6.4 |
| 2827N | 2828N | B 625-500N | 15.9 | 1.6 | 12.7 | 17.9 | 6.4 |
| 2827 | 2828 | B 625-500 | 15.9 | 1.6 | 12.7 | 17.9 | 6.4 |
| 2832 | 2835 | B 687-562 | 17.4 | 1.6 | 14.4 | 19.3 | 6.4 |
| 2836N | 2837N | B 750-625N | 19.1 | 1.6 | 15.9 | 21 | 6.4 |
| 2836 | 2837 | B 750-625 | 19.1 | 1.6 | 15.9 | 21 | 6.4 |
| 2844 | 2845 | B 781-625 | 19.8 | 1.6 | 15.9 | 21.8 | 6.4 |
| 2850N | 2851N | B 875-750N | 22.2 | 1.6 | 19 | 23.8 | 6.4 |
| 2850 | 2851 | B 875-750 | 22.2 | 1.6 | 19 | 23.8 | 6.4 |
| 2847 | 2848 | B 1000-875 | 25.4 | 1.6 | 22.3 | 27 | 6.4 |
| 2838 | 2839 | B 1093-969 | 27.8 | 1.6 | 24.6 | 29.4 | 6.5 |
