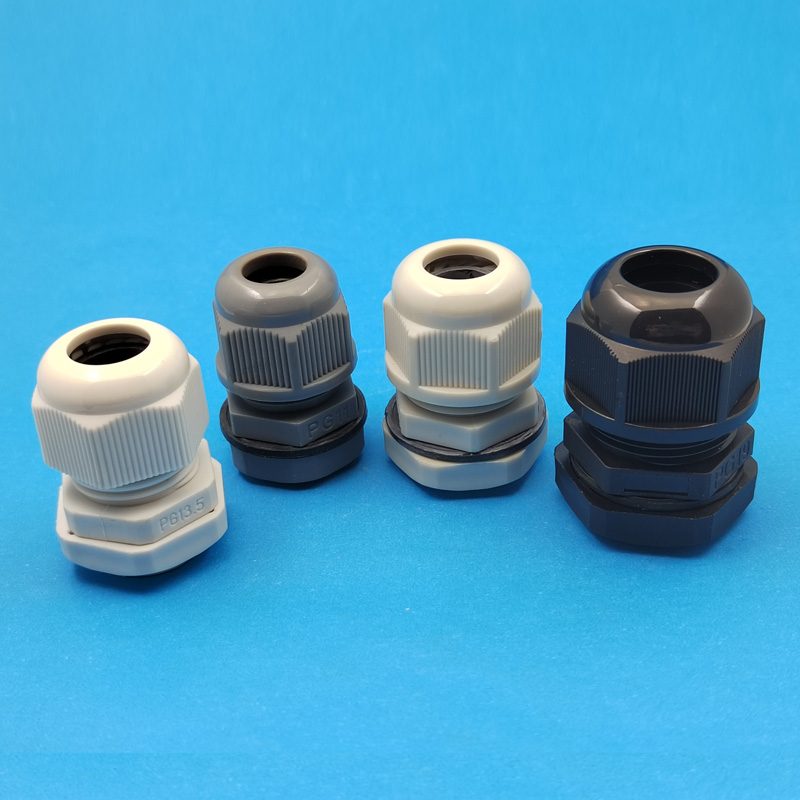

? 螺牙規格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

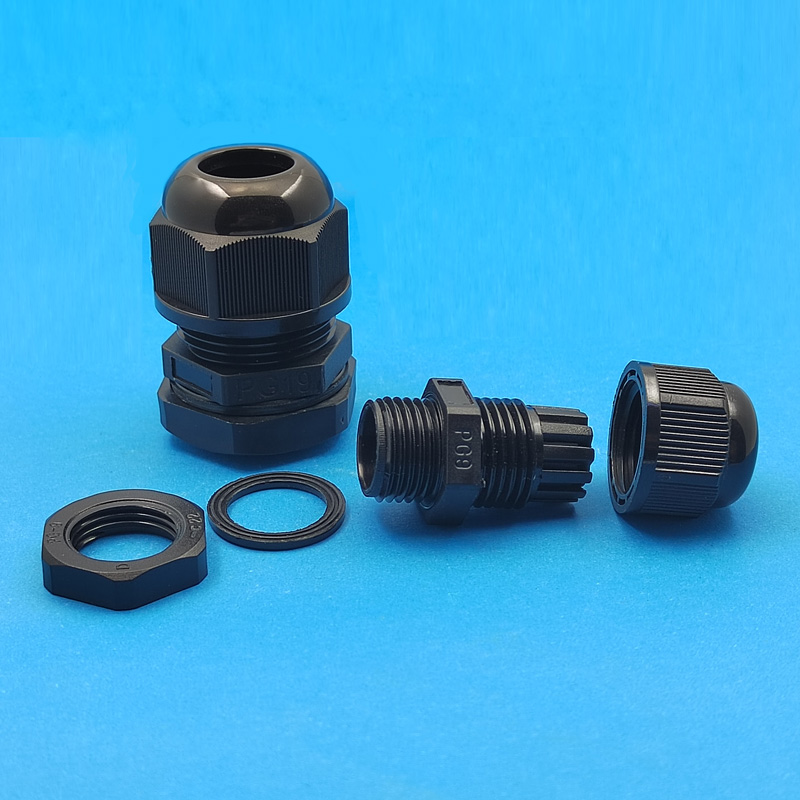

? 產品材質：A、C、F部分采用尼龍PA66制成，B.D部分采用EPDM耐候橡膠制成。（可定制耐寒、耐高溫橡膠;耐高酸堿、耐化學與抗腐蝕橡膠)。
? 防護等級：IP68-10防水、94V-2防火
? 工作溫度：靜態-40℃至100℃或瞬間可耐熱至120℃；動態-20℃至80℃或瞬間可耐熱至100℃。
? 產品顏色：黑色、灰色，其他顏色可定做。
? 產品特性：特殊夾緊爪與夾緊圈之設計，夾緊電纜范圍大，抗拉力特強，可防水、防塵、抗鹽、耐弱酸、酒精、油、油脂及一般溶劑。
| 規格 | 編號 | 電纜范圍 | 螺紋外徑 | 螺紋長度 | 扳手徑 |
| Thread | Item.No. | CableRange | ThreadO.D. | ThreadLength | SpannerSize |

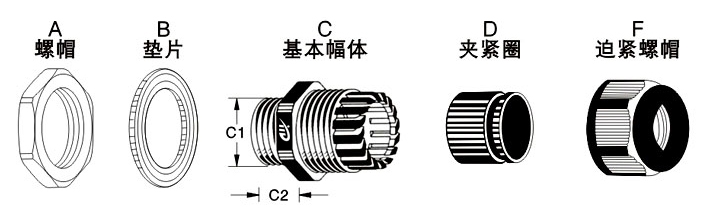

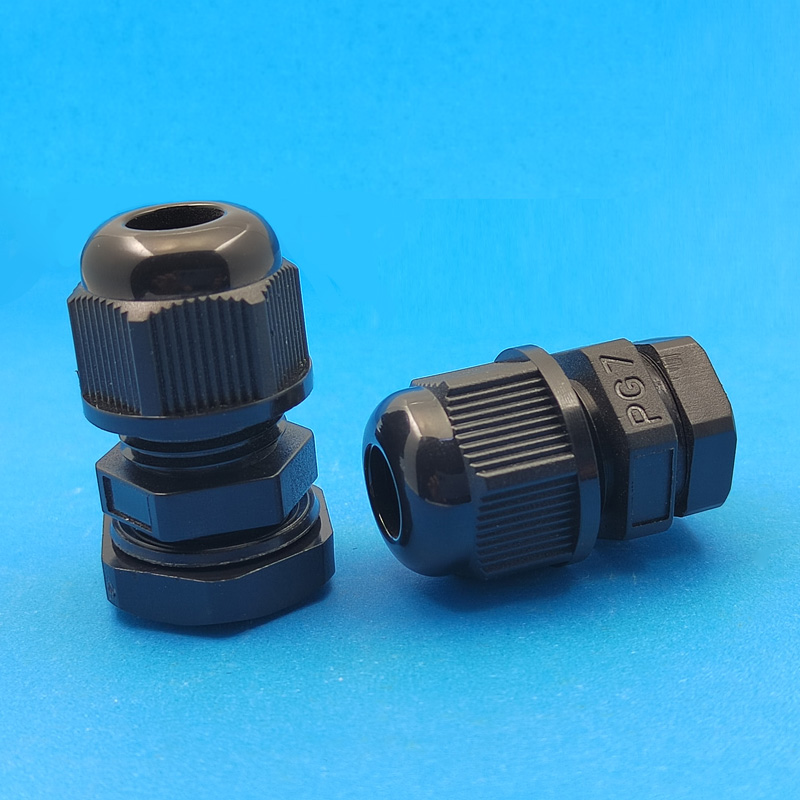

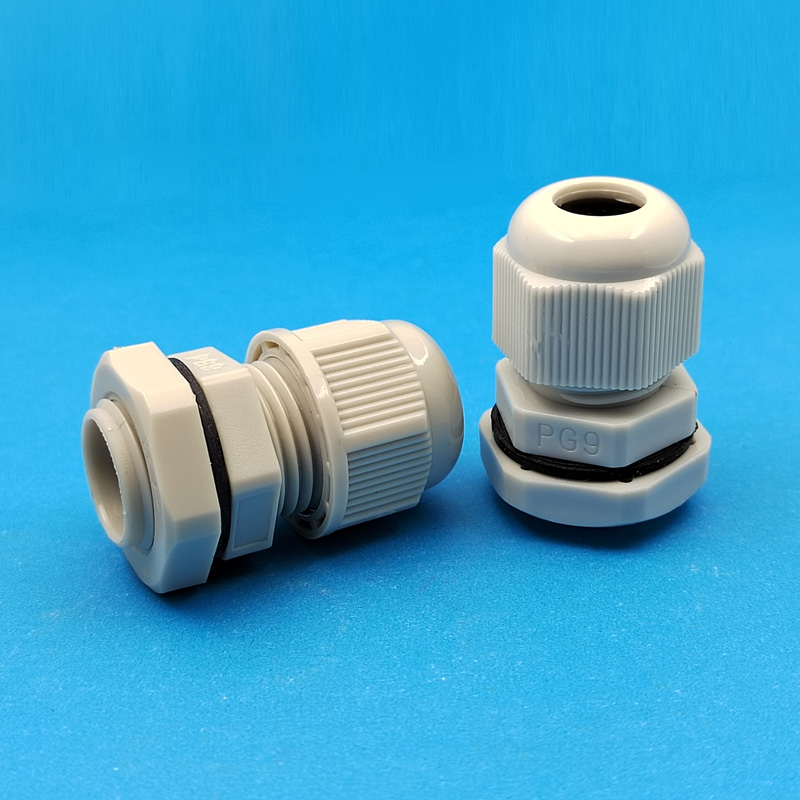

| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | ||
| PG7 | PG7S-3 | 1-3 | 12.5 | 8 | 17/15 |
| PG7S-6 | 3-6.5 | 12.5 | 8 | 17/15 | |
| PG7SL-3 | 1-3 | 12.5 | 15 | 17/15 | |
| PG7SL-6 | 3-6.5 | 12.5 | 15 | 17/15 | |
| PG7-5 | 3-5.5 | 12.5 | 8 | 17/19 | |
| PG7-8 | 4-8 | 12.5 | 8 | 17/19 | |
| PG9 | PG9-5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 |
| PG9-8 | 4-8 | 15.2 | 8.2 | 22/19 | |
| PG9L-5.5 | 3-5.5 | 15.2 | 15 | 22/19 | |
| PG9L-8 | 4-8 | 15.2 | 15 | 22/19 | |
| PG11 | PG11-7 | 3-7 | 18.6 | 10 | 24/22 |
| PG11-10 | 5-10 | 18.6 | 10 | 24/22 | |
| PG11L-7 | 3-7 | 18.6 | 15 | 24/22 | |
| PG11L-10 | 5-10 | 18.6 | 15 | 24/22 | |
| PG13.5 | PG13.5-9 | 5-9 | 20.4 | 10 | 27/24 |
| PG13.5-12.5 | 6-12.5 | 20.4 | 10 | 27/24 | |
| PG13.5L-9 | 5-9 | 20.4 | 15 | 27/24 | |
| PG13.5L-12.5 | 6-12.5 | 20.4 | 15 | 27/24 | |
| PG16 | PG16-11 | 5-11 | 22.5 | 10.8 | 30/27 |
| PG16-14 | 8.5-14 | 22.5 | 10.8 | 30/27 | |
| PG16L-11 | 5-11 | 22.5 | 15 | 30/27 | |
| PG16L-14 | 8.5-14 | 22.5 | 15 | 30/27 | |
| PG19 | PG19-11 | 5-11 | 24 | 11 | 30/27 |
| PG19-14 | 8.5-14 | 24 | 11 | 30/27 | |
| PG21 | PG21-13 | 7-13 | 28.3 | 12 | 36/33 |
| PG21-18 | 12.5-18 | 28.3 | 12 | 36/33 | |
| PG21L-13 | 7-13 | 28.3 | 15 | 36/33 | |
| PG21L-18 | 12.5-18 | 28.3 | 15 | 36/33 | |
| PG25 | PG25-20 | 14-20 | 30 | 13 | 36/37 |
| PG29 | PG29-17.5 | 13-17.5 | 37 | 12 | 46/41 |
| PG29-25 | 17-25 | 37 | 12 | 46/41 | |
| PG36 | PG36-25.5 | 17-25.5 | 47 | 15 | 57/52 |
| PG36-31 | 24-32 | 47 | 15 | 57/52 | |
| PG42 | PG42-32 | 25-32 | 54 | 15 | 64/62 |
| PG42-41 | 30-41 | 54 | 15 | 64/62 | |
| PG48 | PG48-38 | 30-40 | 59.3 | 18.2 | 70/65 |
| PG48-45 | 35-45 | 59.3 | 18.2 | 70/65 |
